What this is for
Settings → Traffic is where you set org-wide guardrails on the volume of requests and the caching behavior every gateway in your org enforces. Use it to cap traffic during a noisy launch, or to turn on response caching to absorb bursty workloads at lower latency and cost. The page has two tabs: Rate Limits and Cache.Rate Limits

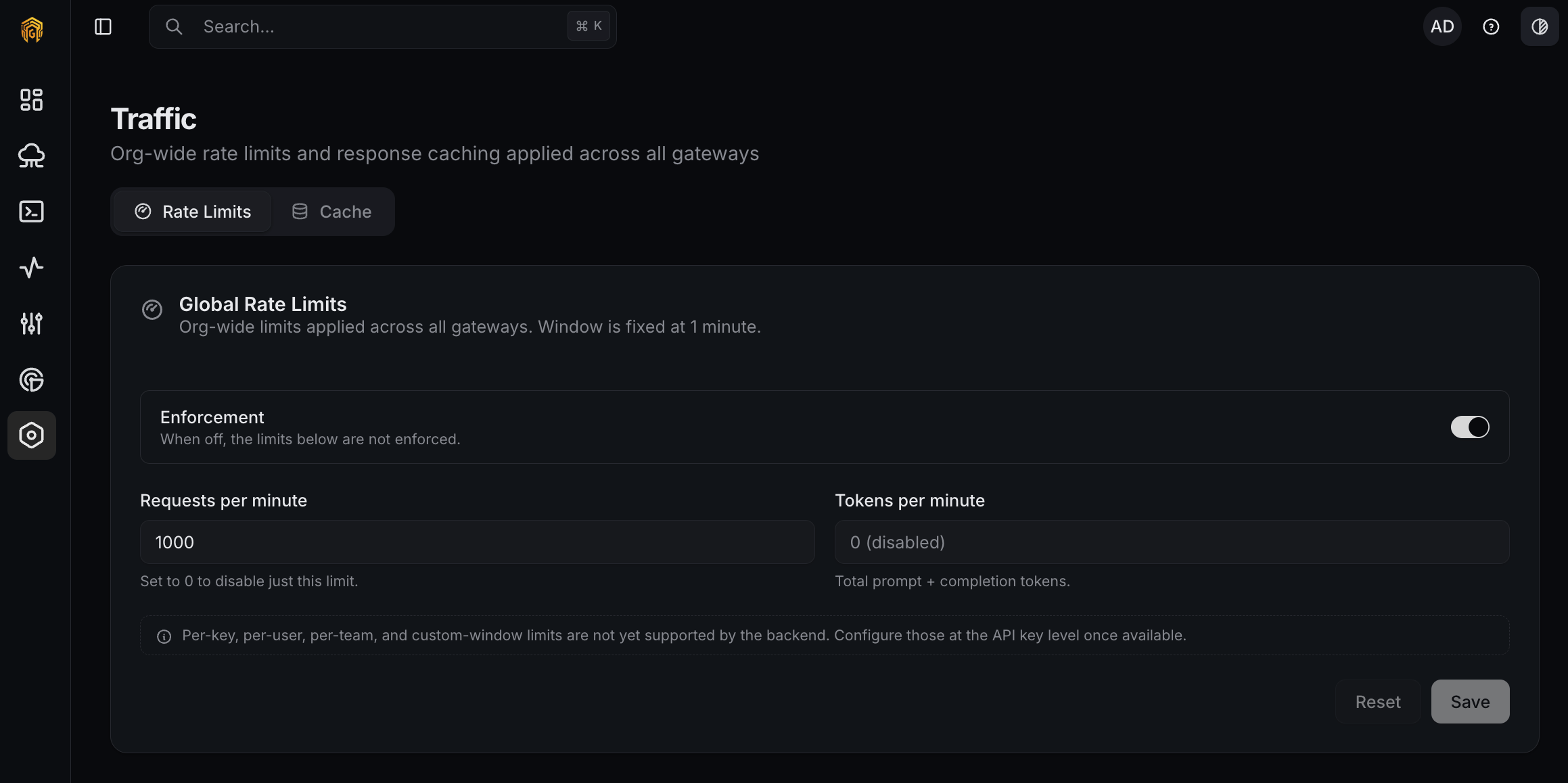

Card is titled Global Rate Limits with help text “Org-wide limits applied across all gateways. Window is fixed at 1 minute.”Options
| Field | Notes |
|---|---|
| Enforcement | Master switch. When off, the limits below are not enforced. |
| Requests per minute | Maximum HTTP requests across all gateways in the org per 1-minute window. Set 0 to disable just this limit. |
| Tokens per minute | Maximum total prompt + completion tokens across all gateways per 1-minute window. Set 0 to disable just this limit. |
Per-key, per-user, per-team, and custom-window limits are not yet supported by the backend. Configure those at the API key level once available.
How to configure rate limits
Open Settings → Traffic
Open Settings → Traffic from the dashboard sidebar. The Rate Limits tab is active by default.
Set the per-minute caps
Enter values for Requests per minute and Tokens per minute and click Save. Use
0 in either field to disable that specific limit while keeping the other one active.Confirm enforcement
On a gateway, send traffic that crosses the threshold and confirm
request.rate_limited events appear on Logs. Optionally subscribe to request.rate_limited on Notifications.Cache

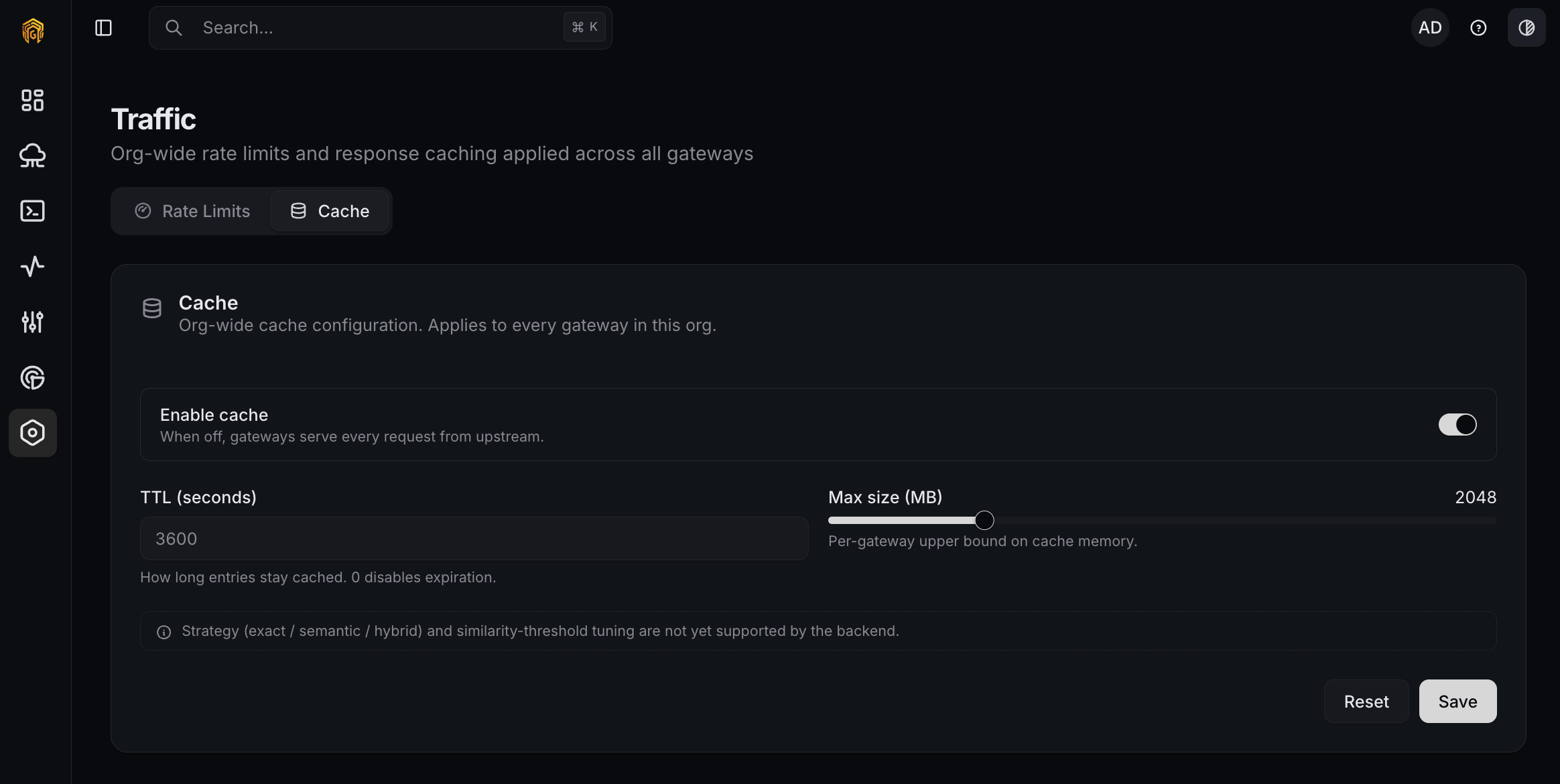

Card is titled Cache with help text “Org-wide cache configuration. Applies to every gateway in this org.”Options
| Field | Notes |
|---|---|
| Enable cache | Master switch. When off, gateways serve every request from upstream. |
| TTL (seconds) | How long cache entries stay valid. 0 disables expiration. |
| Max size (MB) | Per-gateway upper bound on cache memory. Slider, range 256–8192 MB in 256 MB steps. |
Strategy (exact / semantic / hybrid) and similarity-threshold tuning are not yet supported by the backend.
How to configure the cache
Pick a TTL and max size
Set TTL (seconds) (start with
3600 for one hour) and slide Max size (MB) to a value the gateway host can spare. Click Save.Verify hits
Replay a request that should hit the cache and confirm latency drops. Cached responses are flagged in Logs.
Permissions
Owner and Admin can change rate limits and cache. Read Only users see the page but cannot save.Related
- Logs — confirm rate-limit blocks and cache hits.
- Notifications — fire on
request.rate_limited. - API Keys — per-key request and token caps.
